NTE5 Kit – Master Socket ADSL / ADSL2 Broadband High Speed Faceplate Filter

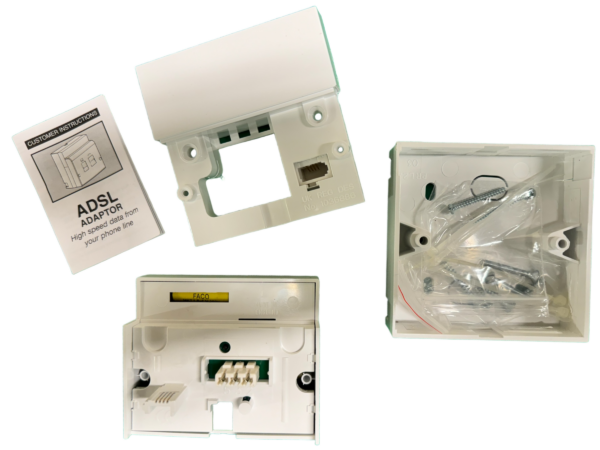

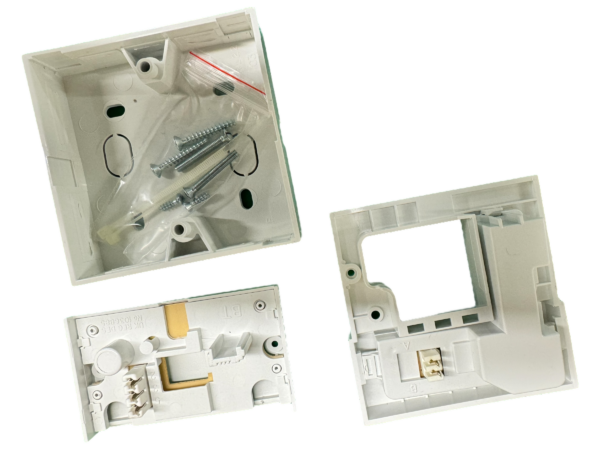

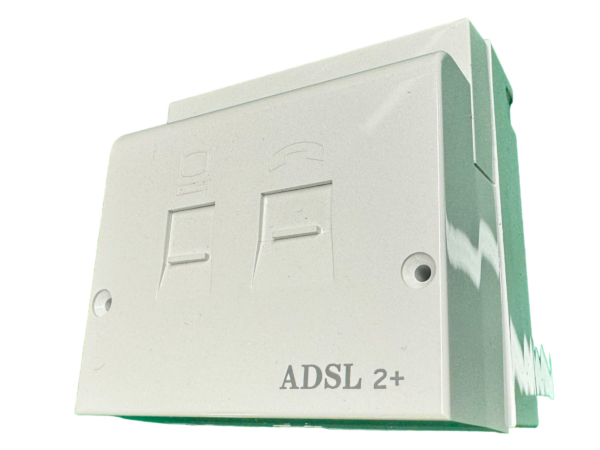

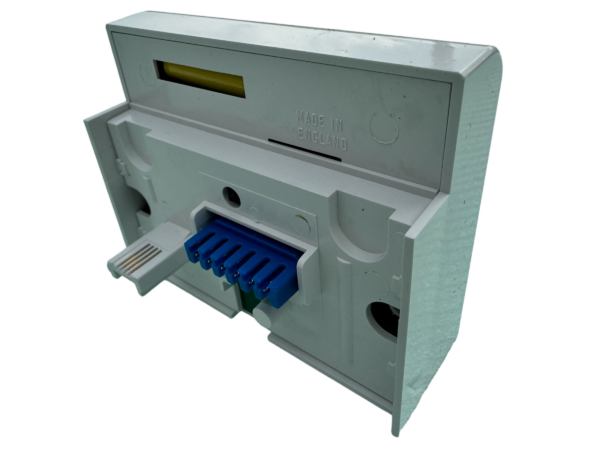

BT Master Socket Kit includes ADSL Centralised Filter 6 way The Pressac Centralised DSL Filter is designed to plug into a standard NTE5 residential telephone outlet. It provides a straight through connection for DSL modem connection via a shuttered RJ45 socket as well as a filtered telephone socket. A 6 way IDC connector is provided for onward connection (filtered) of extension telephones and hard wiring of a DSL modem if required. Connection ports Line : BS6312 approved integrated 431A BT plug Telephone : Connection via BS6312 4 way BT socket Modem : Direct coupled RJ45 (RJ11compatible) socket Extension / ADSL wiring : 6 way IDC connector Key Features V0 rated material colour matched to BT 1P white Tested by BT to SIN 346 Issue 2.2 Compatible with Calling Line Identification working CE Marked – BS EN 55022 With the centralised filter system, the filter becomes an integral part of the wall socket providing a tidy looking fixture with the added benefit of negating the need for subsequent extension sockets to have microfilters plugged into them. Pressac Part Number 60.10908.PS9XX NTE5B
