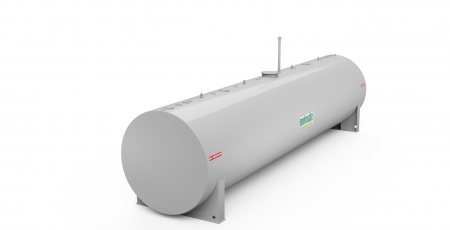

10,000 Gallon Above Ground Fuel Tank | Bare Tank

Description Non-custom Options Fire Certifications Tank Maintenance Specifications DescriptionBare Tank Overview Fireguard tanks insulate fuel products in tanks from ambient temperature variations, reducing emissions to the environment. Primary and secondary tanks are tightness tested on-site using standard air pressure test procedures Steel outer wall provides low-cost maintenance and protection from weathering Primary storage tank and secondary containment are compatible with a wide range of fuels and chemicals Support designs available for all seismic requirements Interstitial space can be monitored for leak detection Available in self-contained double-walled and protected double-walled tanks 30-year tank warranty backed by the Steel Tank Institute   Bare Tank Features (1) UL-142 Flameshield or UL-2085 Fireguard Tank Mounted on Saddles (2) 4” NPT Fitting (1) 6” NPT Fitting (1) Emergency Vent (2) Lifting Lug (1) Atmospheric Vent (1) Manway (1) Interstitial Leak Port (1) 2” NPT Fitting Non-custom OptionsBare Tank Accessories Fuel Transfer Pumps Overfill Alarms Vents Nozzles Fuel Flow Meters Fuel Tank Hoses Interstitial Gauge Leak Gauge Overspill Bowls Fire CertificationsFireguard Benefits UL 2080 Listed “Fire Resistant” UL 2085 Listed “Protected” Both Inner & Outer Steel Tanks built to UL Standards Uniform Fire Code UFC “Protected” Tank National Fire Protection (NFPA) 30 & 30A International Fire Code (IFC) Ballistics Protection Impact protection California Air Resources Board (CARB) for Air Emissions Steel Tank Institute (STI) Standard F941 for Thermally Insulated Aboveground Storage Tanks   Flameshield Benefits Tested Two-Hour Fire Resistance Built to UL 142 Standards Tested by Southwest Research Institute to SwRI 97-04 Double-Wall Tanks Have Fully Monitorable Interstitial Space for Leak detection Tank MaintenanceBare Tank Maintenance The tank operator should preform periodic walk-around inspections to identify and repair areas of damage to the vessel or the coating itself and check for proper drainage around the tank area. It is imperative that the tank exterior is inspected periodically to ensure that the integrity of the coating is maintained. The frequency of periodic repainting will be based upon environmental factors in the geographic area where the tank is located. Special consideration should be given to the selected of the paint, surface preparation, and coating application. The coating selected should be suitable for use with the current coating, or the existing coating should be removed. The coating selected should be of industrial quality Proper site preparation and maintenance are vital to ensure drainage of surface water. Should ground conditions change or settlement occur, take the appropriate steps to maintain proper drainage and prevent standing water near or under the tank area. For diked tanks, remove any product spills immediately. Be sure to dispose of hazardous material properly. For diked tanks fitted with a drain, drain off water only. Drain openings are required to be maintained liquid tight. The primary tank shall be inspected monthly for the presence of water at the lowest possible points inside the primary tank. Remove any water found. Water and sediment in fuel can cause plugging of filters. Also, bacterial growth, originating from the fuel can cause corrosion of tanks and lines. For procedures on how to check for the presence of water and removal of water, refer to the STI R111, Storage Tank Maintenance/For copies of the RP, and more information, please go to www.steeltank.com. Failure to adhere to these maintenance instructions may void your warranty. Tank relocation requirements – often aboveground storage tanks are relocated. The following instructions are to be followed when this occurs: All steps are to be documented and the documentation is to be kept for the life of the tank. The hazards associated with the cleaning, entry, inspection, testing, maintenance, or other aspects of AST’s are significant. Safety considerations and controls should be established prior to undertaking physical activities associated with ASTs. The cleaning of tanks must be per state and local jurisdiction requirements. Refer to the STI Standard SP001, “Standard for the Inspection of Aboveground Storage Tanks” for requirements concerning tank inspections. The SP001 Standard details requirements for inspections based on the tank installation and age. A tank must undergo the appropriate insurance prior to relocation. In addition, the tank must be subjected to a pressure (or vacuum) test. SpecificationsFireguard Specs* UL 2080 Listed “Fire Resistant” UL 2085 Listed “Protected” Inner & Outer Steel Tanks built to UL Standards Uniform Fire Code UFC “Protected” Tank Steel Tank Institute (STI) Standard F941 for Thermally Insulated Above Ground Storage Tanks California Air Resources Board (CARB) for Air Emissions Ballistics Protection Impact Protection International Fire Code (IFC) National Fire Protection (NFPA) 30 & 30A   Flameshield Specs* Tested 2-Hour Fire Resistance Built to UL142 Standards Tested by Southwest Research Institute to SwRI 97-04 Fully Monitorable Interstitial Space for Leak Detection
