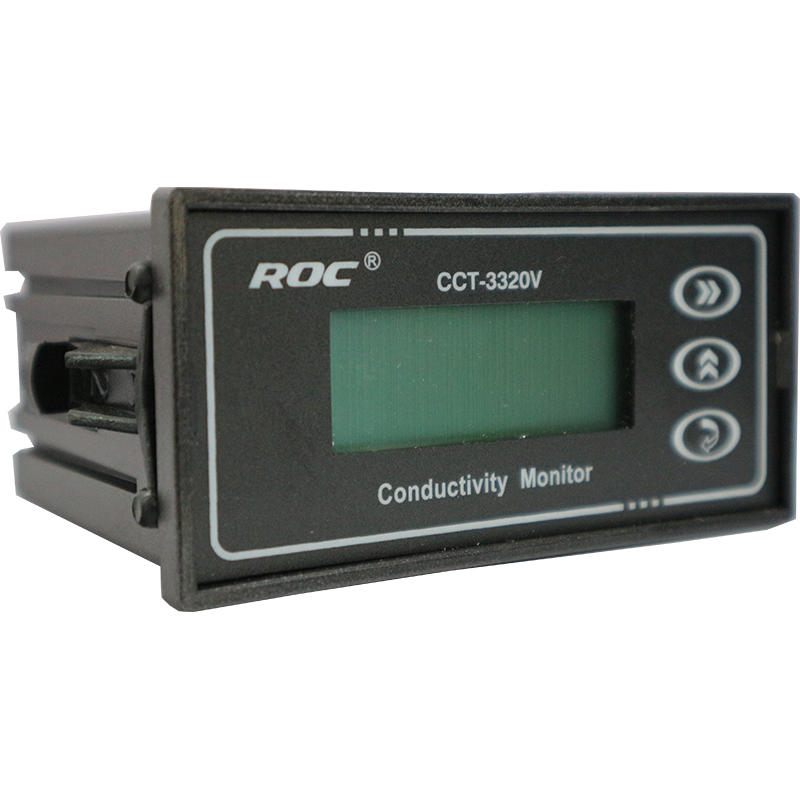

Conductivity Monitor – Model: CCT3320V (CM230)

Description Specifications Measurement Range: 0-2000µS/cm Three available measurement ranges: 0-20.00µS/cm, 0-200.0µS/cm and 0-2000µS/cm Display: 3.5 digits 0.5’’ Backlight LCD for conductivity display Temperature Compensation: Automatically, range 0-60°C, compensation point 25°C Accuracy: ± 2% (F·S) Electrode: 1.00cm-1 plastic platinum holder,  4’ pipe-thread, cable length 5m Alarm output according to upper limit of conductivity and rated output: 3A, 220VAC DC 4-20mA output fulfilled by upper limit of conductivity value to alarm Dimensions: Frame Dimension: 96×48 (mm) Panel Dimension: 91×45 (mm) Depth: 100 (mm) Power Supply: 220 VAC ± 10%, 50Hz Working Condition: Environment Temperature 0-50°C, RH<=85% Testing Standard: JB/T6855
