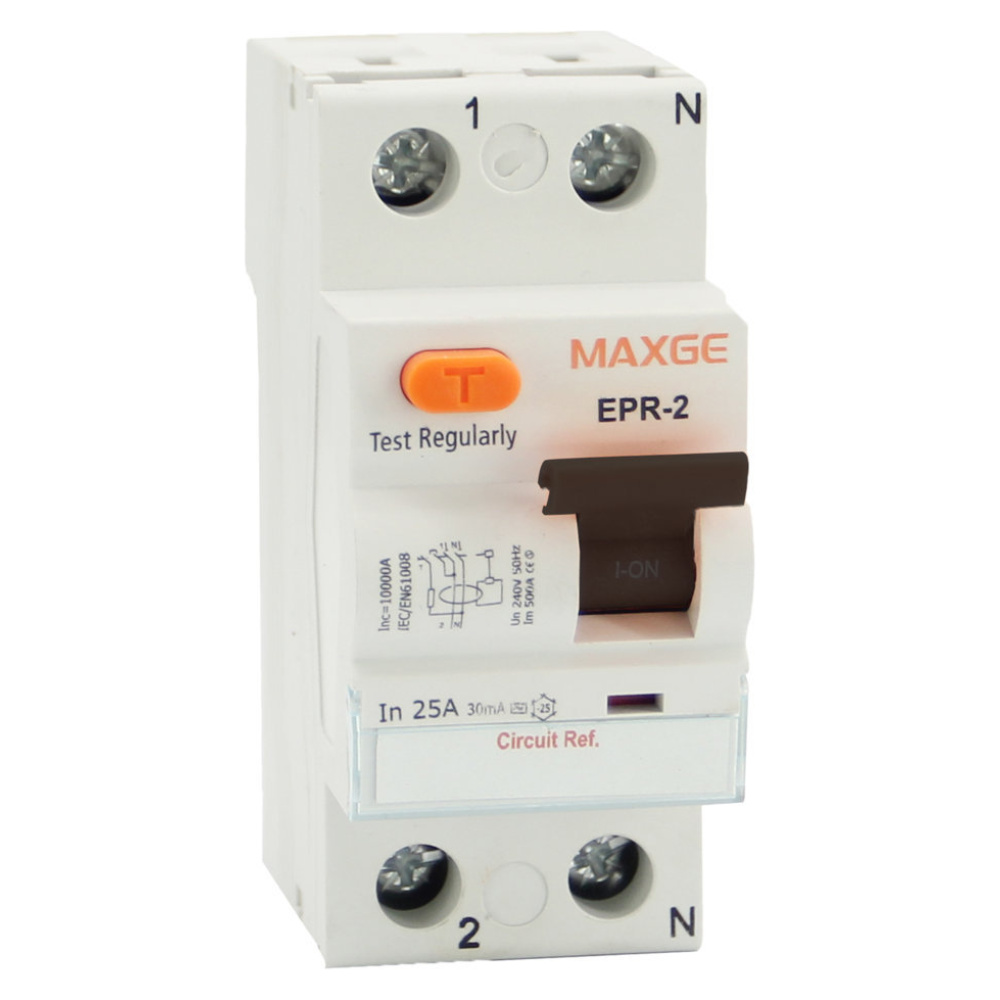

Maxge Alpha 2P differential, 40A, 30mA. Class A superimmunised. 6kA - EPRE2A040030

Number of poles: 2 poles Nominal current (In): 40 amps Sensitivity: 30 mA Operating voltage: 240V AC Local status signalling Window for circuit marker Terminal connection for copper cables: 25 mm² (flexible) / 35 mm² (rigid) Class A: detects alternating and direct leakage currents. Highly immunised. Non-operating leakage current: 0.5xIDn Dimensions: 36 mm wide (18 mm per pole) Allows attachment of accessories and control gear Isolation voltage (Ui): 500VA Pollution degree 3 Impulse voltage (Uimp): 4kV Double insulation class 2 Working temperature: -5 °C to 40 °C International standard: EN/IEC60898-1
