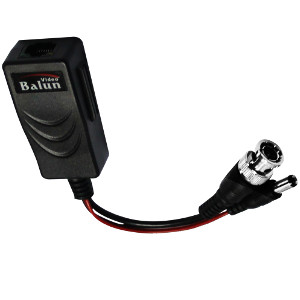

Single Channel HD Video & Power Transmitter (12V/24V DC/AC) CCTV video & power transmitter and receiver allow the transmission of real-time CCTV HD video and power signal via cost-effective Unshielded Twisted Paired (UTP) cable. The TTP111VP-T (TX) and TTP111VP-R (RX) are compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras. It has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Used in pairs, the TTP111VP-T (TX) and TTP111VP-R (RX) eliminate costly and bulky coaxial cable. The superior interference rejection and low emissions allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The TTP111VP-T (TX) and TTP111VP-R (RX) are built-in surge. • Real-time transmission over UTP cat5e/6 • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras • Power signal up to 200m (656ft) • Male BNC with extended 5.9inch (150mm) mini-coax pigtail • RJ45 Jack for UTP cable • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection • Wave Filter Design, Anti-Static Design • Lightning protection design Grade: III • 60 dB crosstalk and noise immunity • Exceptional interference rejection • ABS engineering plastic housing SKU: TTP111VP-T Categories: Audio & Visual, AV Distribution, Video Tags: cctv, video balun
