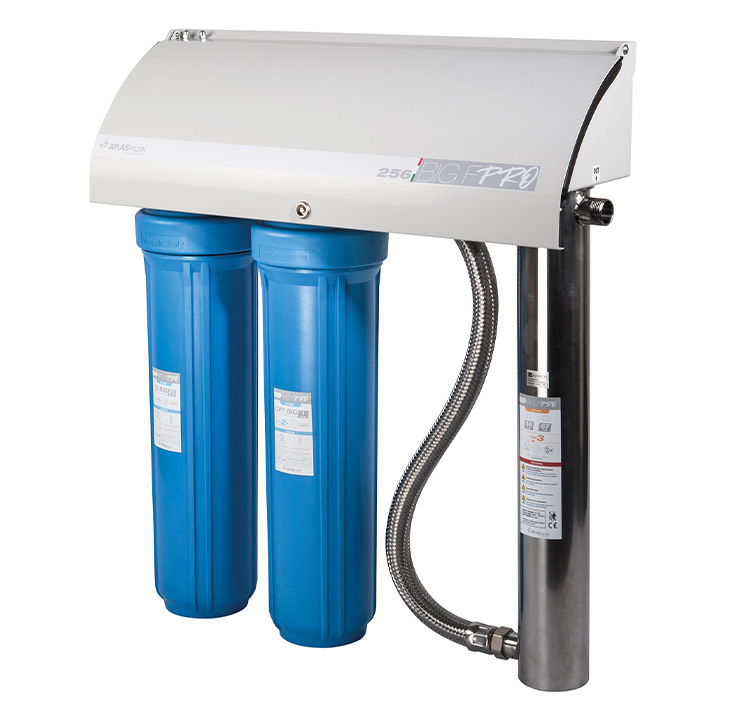

Description Technical FeaturesBenefitsResources & Certificates 2 Stage filtration system with UV treatment Available models: 156 / 265 / 267 Filtration stage 1: 20 micron Filtration stage 2: 1 micron Inlet/Outlet size: 1” Max working temperature: 45°C Max flow rate – model 156: 54 l/m (40 mJ/cm2) – 70 l/m (30 mJ/cm2) / model 256: 54 l/m (40 mJ/cm2) – 70 l/m (30 mJ/cm2) / model 267: 72 l/m (40 mJ/cm2) – 95 l/m (30 mJ/cm2) Total consumption: 61 W / 61 W / 73 W Metal frame: varnished galvanized steel with key lock UVC transmittance: 95% – 1 cm2 UV reactor material: Stainless steel 304 UV reactor connections: thread 1” M UV reactor max working pressure: 8,3 bar UV lamp lifespan: 9000 hrs UV lamp power: model 156: 56 W / model 256: 56 W / model 267: 67 W UV lamp type: HO low pressure Control panel dimension: 218 x 113 x 60 mm Dimension model 156: 722 x 205 x 790 mm Dimension model 256: 722 x 205 x 806 mm Sediment filtration Bacteria and viruses reduction Rain Water treatment Well water treatment Mains water treatment Ho.Re.Ca water treatment Reversible inlet/outlet Lockable lid Protective lid for harsh climate Lamp countdown Failure alarm Resources BIG_F_PRO ATLAS_FILTRI_PDF Certifications
