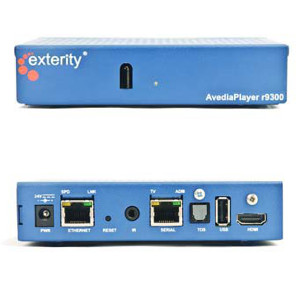

Delivers advanced network video decoding capabilities across a wide range of resolutions up to 1080p60 for superb image quality. The r9300’s low power consumption makes it an economical choice for enterprise video display and digital signage systems. • Plays back channels from all Exterity® AvediaStream® products. • Pre-installed ArtioSign® Display software turns any licensed AvediaPlayer receiver into a digital signage endpoint, combining live TV, video, images, text and more. • Simply plug and play with Power over Ethernet (PoE), built in firmware, and automatic channel discovery. • Full support for IPTV streams up to 1080p60, out-performing standard set-top boxes, to deliver very high quality playback for demanding video environments. • HLS video playback support allows for uninterrupted video streaming in variable network environments (eg Wifi or WAN). • Playback of content protected by HDCPv2.2 or SecureMedia®. • User options include a built-in user interface, access to fully customizable ArtioPortal or third party middleware. • PoE simplifies installation and saves on the cost of cabling and power points. • Secure file transfer using SFTP Video Output • HDMI v1.4b (with HDCP): 1080p,1080i, 720p (50Hz/59.94Hz/ 60Hz), 576p, 576i (50Hz), 480p, 480i (59.94Hz/60Hz) Audio Output • HDMI: 2 or 6 Channel PCM or Bitstream • TOS: 2 Channel PCM or Bitstream Video Decoding • MPEG-4 part 10 H.264 (ISO/IEC 14496/10) • MPEG-2 (ISO/IEC 13818-2) • Resolutions: • 240p, 360p, 480i, 480p 576i, 576p, 720p, 1080i and 1080p @ 50Hz, 59.94Hz or 60Hz Audio Decoding • MPEG-1 Layer II (ISO/IEC 11172-3) • AC3/EAC3 • AAC/HE-AAC • Downmixes multi-channel audio to stereo Streaming • MPEG 2 Transport Stream (ISO/IEC 13818-1) • UDP, HLS, RTP (6Mbps limit for HLS) • IP multicast, IP unicast • IGMPv2/v3 • Video On-Demand: HLS, RTSP, HTTP USB 2.0 Port • Can be used for external storage and Human Interface Devices • USB hot plug enables auto-mounting of USB devices Content Protection • Decryption of HDCPv2.2 protected content • Decryption of SecureMedia DRM protected content (live streams and VoD). SecureMedia Server and client license required. Channel Management • Automatic channel discovery from all Exterity head end equipment • SAP/SDP announcements • Channel access control • XML channel lists • Static channels • Hidden channels • Channel redundancy • Channel failover to channel or web page Infra-red/Control Options • Built-in IR receiver • 3.5mm jack for IR extender or tethered remote control • IR Keyboard and third party IR & USB remote controls supported • TV control via Serial RS232 or HDMI CEC • Remote IR control of Exterity Encoder AV sources System • CPU: ST40-300 650MHz • RAM: 512MB • Flash: 256MB (for firmware and configuration) • OS: Linux 3.4.xx Built-in User Interface • Channel selection menu • Volume control • Audio Language control • DVB Subtitles (ETSI EN 300 743) • Closed captions (CEA-608 captions embedded in CEA- 708 data) • Teletext • Internationalization support Integrated Web Browser • ANT® Galio for integration with Exterity and third party middleware • HTML 4.01, XHTML 1.0, HTTP 1.1, CSS 2.1, CSS 3 partial support • Remote Event Support (HTML 5), JavaScript 1.5, DOM Level 2, XML, AJAX • Unicode and international languages (Western, Greek, Russian and Arabic) • JavaScript API for control of device configuration and media playback • Image formats: png, jpeg, gif and bmp Management • Fully integrated with all Exterity management tools • Network administration via HTTP web interface/SNMP/ Telnet/SSH • Serial RS232 Admin Port • Terminal Control Interface (TCI) • Event logging via Syslog (local and remote) • Firmware upgrade via TFTP • Configuration backup/restore via TFTP • Secure Mode option to lock down receiver SKU: AVPLY-r9300 Categories: Digital Signage, Multimedia
